浏览数量： 193 作者： 本站编辑 发布时间： 2022-12-08 来源： 本站
2022年10月我公司接到阿联酋客户的询价单，询价单里面有个特殊材质NACE，客户询价过很多公司都无果，在客户的询价单里面主要有NACE MR 0175/0103管件比如弯头、三通、四通、活接头、异径管（大小头）、弯管、反边短节、管帽，NACE MR 0175/0103法兰、NACE MR 0175/0103钢管等一些特殊材质的产品，而我公司接到其询价后在24小时内为客户进行了报价。 随后客户又针对很多产品技术方面与我们进行详细沟通，我公司凭借专业的技术和优质的服务赢得了客户的信任，最后和客户达成了合作。
国际NACE由美国腐蚀工程师协会(NACE)于2001年开始共同发布的标准“NACE”。NACE 负责管理大量的标准，其中影响最大、名气最大的是MR0175，其全称为“用于油田设备的抗硫化应力裂纹金属材料”。MR0175 由NACE 于1975 年颁布，其目的是为了在油气生产环境中抗硫化氢失效的金属材料的选择提供指南。MR0175 在过程工业中如此广泛使用，以致于NACE 等同于MR0175。
上海著诚管件制造有限公司是一家为客户提供抗硫NACE MR0175/0103管件、无缝管、焊管、对焊管件、承插管件、螺纹管件及法兰等管道材料的生产加工企业，产品的设计材料为碳钢、不锈钢、合金钢、低温钢和管线钢等，并提供您所需要的包括运输、库存、质量控制等服务，用优质的产品和专业的服务让客户放心。我们还提供定制制造、预制管道，如法兰管、法兰弯头等，以及特殊合金如 Inconel 625、Hastelloy C276 等的熔覆工艺，我们所有的材料都可用于 SGS、ABS、BV、TUV、DNV-GL、LR、Intertek等。非标件可来图加工，以满足不同客户的需求。公司在NACE抗硫管件制作工艺在业内保持较高的水平。

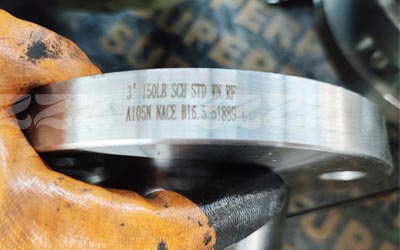

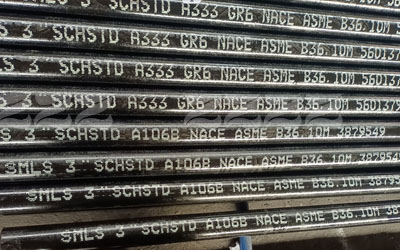

给客户做出来的NACE MR0175/0103管件成品
附客户的询价单
| ITEM | DESCRIPTION | 产品 | 尺寸 | 压力/壁厚 | 材质 |
| 1 | PIPE 1", ASME B36.10M PE S-80 A106-B SMLS | 无缝管 平口 | 1" | sch80 | A106-B |
| 2 | ELBOW 1" ,90 DEG LR ASME B16.11 SW 3000# A105N | 90度承插弯头 | 1" | 3000# | A105N |
| 3 | FULL COUPLING 1", ASME B16.11 SW 3000# A105N F | 双头承插管箍 | 1" | 3000# | A105N |
| 4 | 1" SOCKETWELD FLANGE ASME B16.5 SW 150 LB RF(125-250 AARH) S-80 A105N FRGD | 承插法兰 | 1" | 150# sch80 RF | A105N |
| 5 | 1"GUIDE - U BOLT ON BARE PIPE-(UBG-1-CS) | U型螺栓 | 1" | M10 | A105N |
| 6 | 1" UBF - FIXED POINT U BOLT-(UBF-1-CS) | U型螺栓 | 1" | M10 | A105N |
| 7 | 1" PIPE ASME B36.10M PE S-80 A106-B SMLS | 无缝管 平口 | 1" | sch80 | A106-B |
| 8 | 1/2" PIPE ASME B36.10M PE S-80 A106-B SMLS | 无缝管 平口 | 1/2" | sch80 | A106-B |
| 9 | 1 x 3/4", REDUCING TEE ASME B16.11 SW 3000# A105N FR | 承插异径三通 | 1 x 3/4" | 3000# | A105N |
| 10 | 1 x 1/2", REDUCING TEE ASME B16.11 SW 3000# A105N FR | 承插异径三通 | 1 x 1/2" | 3000# | A105N |
| 11 | 1" CAP ASME B16.11 SW 3000# A105N FRGD | 承插管帽 | 1" | 3000# | A105N |
| 12 | 1/2" ELBOW 90 DEG LR ASME B16.11 SW 3000# A105N | 90度承插弯头 | 1/2" | 3000# | A105N |
| 13 | 3/4" SOCKETWELD FLANGE ASME B16.5 SW 150 LB RF(125-250 AARH) S-80 A105N FRGD | 承插法兰 | 3/4" | 150# sch80 RF | A105N |
| 14 | 3/4" BLIND FLANGE ASME B16.5 FLG 150 LB RF (125AARH) A105N FRGD | 盲板 | 3/4" | cl150 RF | A105N |
| 15 | 1/2" PLUG ASME B16.11 MTHD 3000# A105N FRGD | 螺纹管塞 | 1/2" | 3000# NPT | A105N |
| 16 | 1" GUIDE - U BOLT ON BARE PIPE-(UBG-1-CS) | U型螺栓 | 1" | M10 | A105N |
| 17 | 1" UBF - FIXED POINT U BOLT-(UBF-1-CS) | U型螺栓 | 1" | M10 | A105N |
| 18 | 1.1/2" PIPE ASME B36.10M BE (NACE) S-80 A106-B SM | 无缝管 坡口 | 1.1/2" | sch80 | A106-B |
| 19 | 1.1/2" x 1"REDUCING TEE ASME B16.9 BE (NACE) S-XXSxS-1 A234-WPB SMLS | 异径三通 | 1.1/2" x 1" | sch xxs | A234-WPB |
| 20 | 1.1/2" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-XXSA234-WPB SMLS | 90度弯头 LR | 1.1/2" | sch xxs | A234-WPB |
| 21 | 1.1/2" ELBOW 45 DEG LR ASME B16.9 BE (NACE) S-XXSA234-WPB SMLS | 45度弯头 LR | 1.1/2" | sch xxs | A234-WPB |
| 22 | 1.1/2" WELDNECK FLANGE ASME B16.5 BE 600 LB RF(125-250 AARH) (NACE) S-XXS A105N FRGD | 对焊法兰 | 1.1/2" | cl600 XXS RF | A105N |
| 23 | 1" WELDNECK FLANGE ASME B16.5 BE 600 LB RF(125-250 AARH) (NACE) S-XXS A105N FRGD | 对焊法兰 | 1" | cl600 XXS RF | A105N |
| 24 | 1" BLIND FLANGE ASME B16.5 FLG 600 LB RF (125AARH) (NACE) A105N FRGD | 盲板 | 1" | cl600 RF | A105N |
| 25 | 5/8", 95 BOLT & NUTS FULL-THD W/TWO-HVY-HEX-NUTB18.2.1/ASME B18.2.2 HOT-DIP-GALVA193-B7M/A194-2HM | 双头全牙螺栓&两个重型六角螺母 | 5/8"x95mm | 193-B7M/A194-2HM | |
| 26 | 1.1/2" UBF - FIXED POINT U BOLT-(UBF-1.5-CS) | U型螺栓 | 1.1/2" | M12 | A105N |
| 27 | 1.1/2" GUIDE - U BOLT ON BARE PIPE-(UBG-1.5-CS) | U型螺栓 | 1.1/2" | M12 | A105N |
| 28 | 2 x 1" ECCENTRIC REDUCER ASME B16.9 BE (NACE)S-XXSxS-XXS A234-WPB SMLS | 偏心大小头 | 2 x 1" | sch xxs | A234-WPB |
| 29 | 1.1/2 x1" ECCENTRIC REDUCER ASME B16.9 BE (NACE)1 S-XXSxS-XXS A234-WPB SMLS | 偏心大小头 | 1.1/2" x 1" | sch xxs | A234-WPB |
| 30 | 1.1/2" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-XXSA234-WPB SMLS | 90度弯头 LR | 1.1/2" | sch xxs | A234-WPB |
| 32 | 1" WELDNECK FLANGE ASME B16.5 BE 600 LB RF(125-250 AARH) (NACE) S-XXS A105N FRGD | 对焊法兰 | 1" | cl600 XXS RF | A105N |
| 33 | 5/8" 115 BOLT & NUTS FULL-THD W/TWO-HVY-HEX-NUTB18.2.1/ASME B18.2.2 HOT-DIP-GALVA193-B7M/A194-2HM | 双头全牙螺栓&两个重型六角螺母 | 5/8"x115mm | 193-B7M/A194-2HM | |
| 34 | 1" PIPE ASME B36.10M BE (NACE) S-XXS A106-B S | 无缝管 坡口 | 1" | sch xxs | A106-B |
| 35 | 1" PIPE ASME B36.10M BE (NACE) S-80 A106-B SM | 无缝管 坡口 | 1" | sch80 | A106-B |
| 36 | 1.1/2" PIPE ASME B36.10M BE (NACE) S-80 A106-B SM | 无缝管 坡口 | 1.1/2" | sch80 | A106-B |
| 37 | 2" PIPE ASME B36.10M BE (NACE) S-XXS A106-B S | 无缝管 坡口 | 2" | sch xxs | A106-B |
| 38 | 2" PIPE ASME B36.10M BE (NACE) S-80 A106-B SM | 无缝管 坡口 | 2" | sch80 | A106-B |
| 39 | 2" PIPE ASME B36.10M BE (NACE) S-160 A106-B S | 无缝管 坡口 | 2" | sch160 | A106-B |
| 40 | 3" PIPE ASME B36.10M BE (NACE) S-STD A106-B S | 无缝管 坡口 | 3" | STD | A106-B |
| 41 | 3" PIPE ASME B36.10M BE (NACE) S-STD A333-6 S | 无缝管 坡口 | 3" | STD | A333-6 |
| 42 | 4" PIPE ASME B36.10M BE (NACE) S-STD A333-6 S | 无缝管 坡口 | 4" | STD | A333-6 |
| 43 | 1" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-80A234-WPB SMLS | 90度弯头 LR | 1" | sch80 | A234-WPB |
| 44 | 2" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-80A234-WPB SMLS | 90度弯头 LR | 2" | sch80 | A234-WPB |
| 45 | 2" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-160A234-WPB SMLS | 90度弯头 LR | 2" | sch160 | A234-WPB |
| 46 | 2" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-XXSA234-WPB SMLS | 90度弯头 LR | 2" | sch xxs | A234-WPB |
| 47 | 2" ELBOW 45 DEG LR ASME B16.9 BE (NACE) S-80A234-WPB SMLS | 45度弯头 LR | 2" | sch80 | A234-WPB |
| 48 | 3" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-STDA234-WPB SMLS | 90度弯头 LR | 3" | STD | A234-WPB |
| 49 | 3" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-STDA234-WPB SMLS | 90度弯头 LR | 3" | STD | A234-WPB |
| 50 | 4" ELBOW 90 DEG LR ASME B16.9 BE (NACE) S-STDA420- WPL6 SMLS | 90度弯头 LR | 4" | STD | A420- WPL6 |
| 51 | 1" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-XXS A105N FRGD | 对焊法兰 | 1" | cl150 XXS RF | A105N |
| 52 | 1" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-80 A105N FRGD | 对焊法兰 | 1" | cl150 SCH80 RF | A105N |
| 53 | 1" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-80 A105N FRGD | 对焊法兰 | 1" | cl150 SCH80 RF | A105N |
| 54 | 2" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-160 A105N FRGD | 对焊法兰 | 2" | cl150 SCH160 RF | A105N |
| 55 | 2" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-80 A105N FRGD | 对焊法兰 | 2" | cl150 SCH80 RF | A105N |
| 56 | 2" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-80 A350- LF2 CL.1 FRGD | 对焊法兰 | 2" | cl150 SCH80 RF | A350- LF2 CL.1 |
| 57 | 2" WELDNECK FLANGE ASME B16.5 BE 600 LB RF(125-250 AARH) (NACE) S-80 A105N FRGD | 对焊法兰 | 2" | cl600 SCH80 RF | A105N |
| 58 | 2" WELDNECK FLANGE ASME B16.5 BE 600 LB RF(125-250 AARH) (NACE) S-XXS A105N FRGD | 对焊法兰 | 2" | cl600 XXS RF | A105N |
| 59 | 2" WELDNECK FLANGE ASME B16.5 BE 300 LB RF(125-250 AARH) (NACE) S-80 A105N FRGD | 对焊法兰 | 2" | cl300 SCH80 RF | A105N |
| 60 | 3" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-STD A105N FRGD | 对焊法兰 | 3" | cl150 STD RF | A105N |
| 61 | 3" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-STD A350- LF2 CL.1 FRGD | 对焊法兰 | 3" | cl150 STD RF | A350- LF2 CL.1 |
| 62 | 3/4" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-80 A105N FRGD | 对焊法兰 | 3/4" | cl150 SCH80 RF | A105N |
| 63 | 4" WELDNECK FLANGE ASME B16.5 BE 150 LB RF(125-250 AARH) (NACE) S-STD A350- LF2 CL.1 FRGD | 对焊法兰 | 4" | cl150 STD RF | A350- LF2 CL.1 |
| 64 | 1" BLIND FLANGE ASME B16.5 FLG 150 LB RF (125AARH) (NACE) A105N FRGD | 盲板 | 1" | cl150 RF | A105N |
| 65 | 3/4" BLIND FLANGE ASME B16.5 FLG 150 LB RF (125AARH) (NACE) A105N FRGD | 盲板 | 3/4" | cl150 RF | A105N |
| 66 | 2" SPECTACLE BLIND ASME B16.48 150 LB SERR-FC(125-250 AARH) A516 GR. 70N (NACE+HIC) PLATE | 八字盲板 | 2" | cl150 | A516 GR. 70N |
| 67 | 2 x 1" WELDOLET MSS SP-97 BE (NACE) S-80xS-80 A10FRGD | 对焊支管座 | 2 x 1" | sch80 | A105N |
| 68 | 2 x 3/4" WELDOLET MSS SP-97 BE (NACE) S-80xS-80 A10FRGD | 对焊支管座 | 2 x 3/4" | sch80 | A105N |
| 69 | 3 x 3/4" WELDOLET MSS SP-97 BE (NACE) S-STDxS-80 A1FRGD | 对焊支管座 | 3 x 3/4" | S-STDxS-80 | A105N |
| 70 | 2 x 1" CONCENTRIC REDUCER ASME B16.9 BE (NACE)S-160xS-XXS A234-WPB SMLS | 同心大小头 | 2 x 1" | S-160xS-XXS | A234-WPB |
| 71 | 3 x 1" CONCENTRIC REDUCER ASME B16.9 BE (NACE)1.1/2 S-STDxS-80 A234-WPB SMLS | 同心大小头 | 3 x 1" | S-STDxS-80 | A234-WPB |
| 72 | 3 x 2" ECCENTRIC REDUCER ASME B16.9 BE (NACE)S-STDxS-80 A420- WPL6 SMLS | 偏心大小头 | 3 x 2" | S-STDxS-80 | A420- WPL6 |
| 73 | 4 x 3" ECCENTRIC REDUCER ASME B16.9 BE (NACE)S-STDxS-STD A420- WPL6 SMLS | 偏心大小头 | 4 x 3" | STD | A420- WPL6 |
| 74 | 1/2", 90 BOLT & NUTS FULL-THD W/TWO-HVY-HEX-NUTB18.2.1/ASME B18.2.2 HOT-DIP-GALVA193-B7M/A194-2HM | 双头全牙螺栓&两个重型六角螺母 | 1/2"x90mm | 193-B7M/A194-2HM | |
| 75 | 5/8" 105 BOLT & NUTS FULL-THD W/TWO-HVY-HEX-NUTB18.2.1/ASME B18.2.2 HOT-DIP-GALVA193-B7M/A194-2HM | 双头全牙螺栓&两个重型六角螺母 | 5/8" x105mm | 193-B7M/A194-2HM | |
| 76 | 5/8", 115 BOLT & NUTS FULL-THD W/TWO-HVY-HEX-NUTB18.2.1/ASME B18.2.2 HOT-DIP-GALVA193-B7M/A194-2HM | 双头全牙螺栓&两个重型六角螺母 | 5/8"x115mm | 193-B7M/A194-2HM | |
| 77 | 5/8", 155 BOLT & NUTS FULL-THD W/TWO-HVY-HEX-NUTB18.2.1/ASME B18.2.2 HOT-DIP-GALVA193-B7M/A194-2HM | 双头全牙螺栓&两个重型六角螺母 | 5/8"x155mm | 193-B7M/A194-2HM | |
| 78 | 2", GUIDE - U BOLT ON BARE PIPE-(UBG-2-CS) | U型螺栓 | 2" | M12 | A105N |
| 79 | 2", UBF - FIXED POINT U BOLT-(UBF-2-CS) | U型螺栓 | 2" | M12 | A105N |
| 80 | 2", CAP ASME B16.9 BE (NACE) S-80 A234-WPB SML | 管帽 | 2" | sch80 | A234-WPB |
| 81 | 2 x 2" EQUAL TEE ASME B16.9 BE (NACE) S-80 A234-WSMLS | 三通 | 2 x 2" | sch80 | A234-WPB |
| 96 | STEEL, L 90*90*10 (BS EN 10025 S275JR Material OR Equivalant) | 角钢 | 90*90*10 | S275JR | |
| 97 | STEEL, UB 254 X 102 X25 (BS EN 10025 S275JR Material OR Equivalant) | H型钢 | 254 X 102 X25 | S275JR | |
| 98 | STEEL, L 60*60*5 (BS EN 10025 S275JR Material OR Equivalant) | 角钢 | 60*60*5 | S275JR | |
| 99 | STEEL, UB 203 X 203 X 54 (BS EN 10025 S275JR Material OR Equivalant) | H型钢 | 203 X 203 X 54 | S275JR | |
| 100 | 2" INSULATION GASKET W/ SLEEVE & WASHER MFG'RB16.5 150 LB RF (125-250 AARH) GLASS REINFORCEDEPOXY PIKOTEK OR EQUIVALENT | 绝缘垫片套件 | 2" | 150LB | |
| 101 | 1", SPRL-WND GSK 4.5 MM THK ASME B16.20 150 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 1" | 150LB THK:4.5MM | SS316 |
| 102 | 1", SPRL-WND GSK 4.5 MM THK ASME B16.20 600 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 1" | 600LB THK:4.5MM | SS316 |
| 103 | 1.1/2" SPRL-WND GSK 4.5 MM THK ASME B16.20 150 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 1.1/2" | 150LB THK:4.5MM | SS316 |
| 104 | 3/4", SPRL-WND GSK 4.5 MM THK ASME B16.20 150 LB(125-250 AARH) OUTER RING=CS AISI 316L-SSWINDING W/ GRH-FILL | 金属缠绕垫片 | 3/4" | 150LB THK:4.5MM | SS316 |
| 105 | 3/4", SPRL-WND GSK 4.5 MM THK ASME B16.20 150 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 3/4" | 150LB THK:4.5MM | SS316 |
| 106 | 2", SPRL-WND GSK 4.5 MM THK ASME B16.20 150 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 2" | 150LB THK:4.5MM | SS316 |
| 107 | 2", SPRL-WND GSK 4.5 MM THK ASME B16.20 300 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 2" | 300LB THK:4.5MM | SS316 |
| 108 | 2", SPRL-WND GSK 4.5 MM THK ASME B16.20 600 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 2" | 600LB THK:4.5MM | SS316 |
| 109 | 3", SPRL-WND GSK 4.5 MM THK ASME B16.20 150 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 3" | 150LB THK:4.5MM | SS316 |
| 110 | 4", SPRL-WND GSK 4.5 MM THK ASME B16.20 150 LB(125-250 AARH) OUTER RING=CS (NACE) AISI316L-SS WINDING W/ GRH-FILL | 金属缠绕垫片 | 4" | 150LB THK:4.5MM | SS316 |
